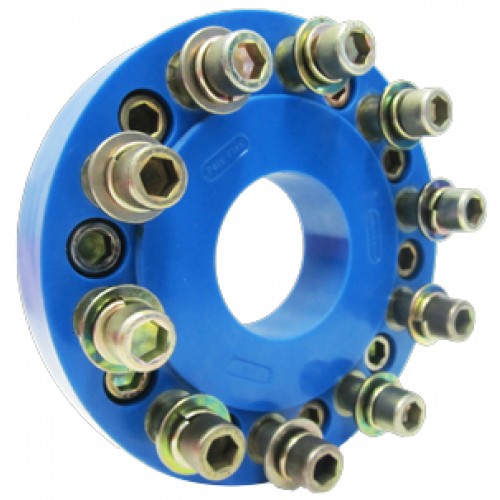

8170 Flexible Disc Coupling

Flange Bolt Circle Diameter PCD (F)170mm
Flange Bolt SizeM14 SHCS
Flange Index Ring Spigot (E)140mm
Flange Index Ring TypeB
Poly Flex Coupling OD (G)212mm
Poly Flex Coupling ID75mm
Poly Flex Coupling Thickness (A)45mm
Flange OD (C)200mm
Light Duty Rating (Nm)N/A
Medium Duty Rating (Nm)N/A
Heavy Duty Rating (Nm)4000
Super Heavy Duty Rating (Nm)8500
Weight (kg)4.60
Data Sheet
Categories: ,
8170-Coupling
8170-Coupling
Polymer Code 80D 95A 90A 80A
Hardness – Shore 80 95 90 83
Tensile Strength – psi 7550 6500 4800 4500
Rating Super Heavy Duty Heavy Duty Medium Duty Light Duty

    Enquire about this product

    Vessel:

    LOA:
    Construction:

    Hull type:

    Engine(s)

    Number:
    Make & Model
    Rate HP:
    RPM:

    Weight:

    Gearbox(es)

    Number:
    Make & Model
    Reduction: :1
    Weight:

    Enginer/Gearbox Configuration

    If other please specific:

    Vessel Use:

    A:
    B:
    E:
    F:

    G:

    Gearbox flange spigot:
