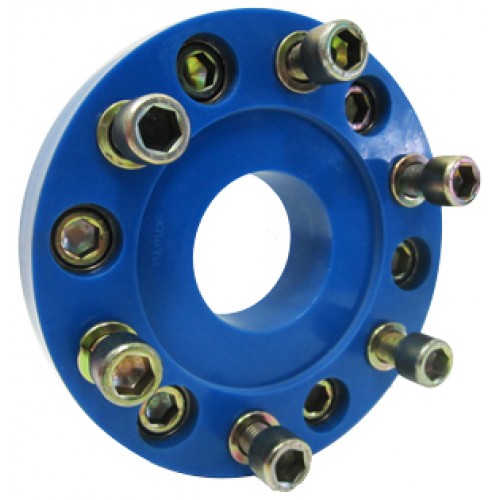

6170 Flexible Disc Coupling

Flange Bolt Circle Diameter PCD (F)170mm
Flange Bolt SizeM16 SHCS
Flange Index Ring Spigot (E)130mm
Flange Index Ring TypeA
Poly Flex Coupling OD (G)212mm
Poly Flex Coupling ID75mm
Poly Flex Coupling Thickness (A)38.10mm
Flange OD (C)
Light Duty Rating (Nm)N/A
Medium Duty Rating (Nm)N/A
Heavy Duty Rating (Nm)4500
Super Heavy Duty Rating (Nm)N/A
Weight (kg)4.5
Data Sheet
Categories: ,
6170-Coupling
6170-Coupling
Polymer Code 80D 95A 90A 80A
Hardness – Shore 80 95 90 83
Tensile Strength – psi 7550 6500 4800 4500
Rating Super Heavy Duty Heavy Duty Medium Duty Light Duty
