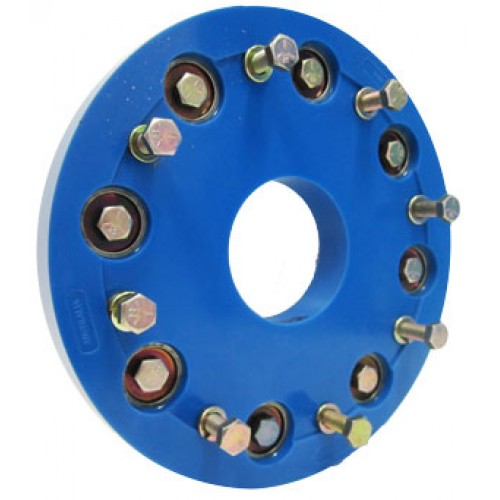

1700 Flexible Disc Coupling

Flange Bolt Circle Diameter PCD (F)7 1/4" (184.15mm)
Flange Bolt Size(8) 3/8" UNF (45deg)
Flange Index Ring Spigot (E)7 3/4" (196.85mm)
Flange Index Ring TypeA
Poly Flex Coupling OD (G)9 1/2" (241.30mm)
Poly Flex Coupling ID3" (76.20mm)
Poly Flex Coupling Thickness (A)1" (25.40mm)
Flange OD (C)9" (228.60mm)
Light Duty Rating (Nm)N/A
Medium Duty Rating (Nm)1690
Heavy Duty Rating (Nm)2370
Super Heavy Duty Rating (Nm)N/A
Weight (kg)2.2
Data Sheet
Categories: ,
1700-Couping
Polymer Code 80D 95A 90A 80A
Hardness – Shore 80 95 90 83
Tensile Strength – psi 7550 6500 4800 4500
Rating Super Heavy Duty Heavy Duty Medium Duty Light Duty
1700-Couping
