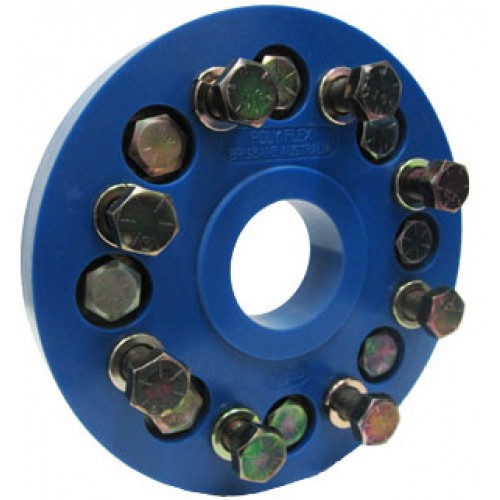

9934 Flexible Disc Coupling

Flange Bolt Circle Diameter PCD (F)200mm
Flange Bolt Size3/4" UNF
Flange Index Ring Spigot (E)110mm
Flange Index Ring TypeB
Poly Flex Coupling OD (G)280mm
Poly Flex Coupling ID75mm
Poly Flex Coupling Thickness (A)38.10mm
Flange OD (C)230mm
Light Duty Rating (Nm)N/A
Medium Duty Rating (Nm)N/A
Heavy Duty Rating (Nm)7000
Super Heavy Duty Rating (Nm)N/A
Weight (kg)6.6
Data Sheet
Categories: ,
9934-Coupling
9934-Coupling
Polymer Code 80D 95A 90A 80A
Hardness – Shore 80 95 90 83
Tensile Strength – psi 7550 6500 4800 4500
Rating Super Heavy Duty Heavy Duty Medium Duty Light Duty
