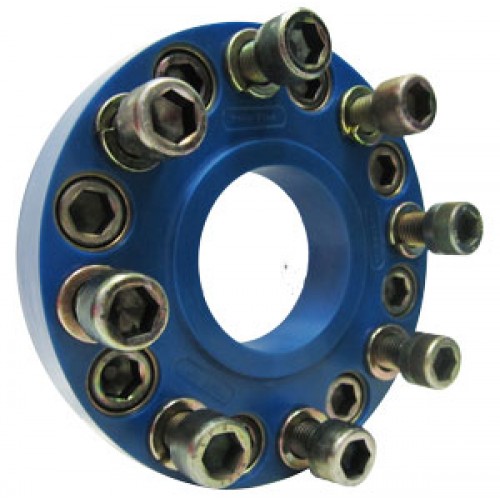

7608 IRM Flexible Disc Coupling

Flange Bolt Circle Diameter PCD (F)152.40mm
Flange Bolt SizeM16 SHCS
Flange Index Ring Spigot (E)95.25mm
Flange Index Ring TypeB
Poly Flex Coupling OD (G)184.15mm
Poly Flex Coupling ID75mm
Poly Flex Coupling Thickness (A)31.75mm
Flange OD (C)152.40mm
Light Duty Rating (Nm)N/A
Medium Duty Rating (Nm)N/A
Heavy Duty Rating (Nm)3810
Super Heavy Duty Rating (Nm)N/A
Weight (kg)3.6
Data Sheet
Categories: ,
7608-IRM-Coupling
7608-IRM-Coupling
Polymer Code 80D 95A 90A 80A
Hardness – Shore 80 95 90 83
Tensile Strength – psi 7550 6500 4800 4500
Rating Super Heavy Duty Heavy Duty Medium Duty Light Duty
