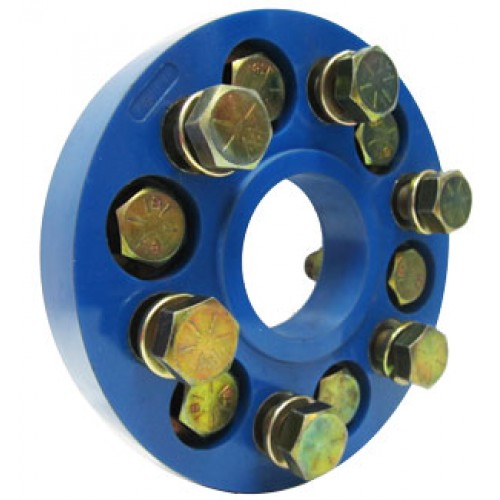

7206 3/4 Flexible Disc Coupling

Flange Bolt Circle Diameter PCD (F)6" (152.40mm)
Flange Bolt Size3/4" UNF
Flange Index Ring Spigot (E)3 3/4" (95.25mm)
Flange Index Ring TypeB
Poly Flex Coupling OD (G)8 3/8" (212.72mm)
Poly Flex Coupling ID2 7/8" (73.02mm)
Poly Flex Coupling Thickness (A)1 1/2" (38.10mm)
Flange OD (C)7 1/4" (184.15mm)
Light Duty Rating (Nm)N/A
Medium Duty Rating (Nm)3500
Heavy Duty Rating (Nm)4800
Super Heavy Duty Rating (Nm)N/A
Weight (kg)4.9
Data Sheet
Categories: ,
7206-34-Coupling7206-34-Coupling
Polymer Code80D95A90A80A
Hardness – Shore80959083
Tensile Strength – psi7550650048004500
RatingSuper Heavy DutyHeavy DutyMedium DutyLight Duty
