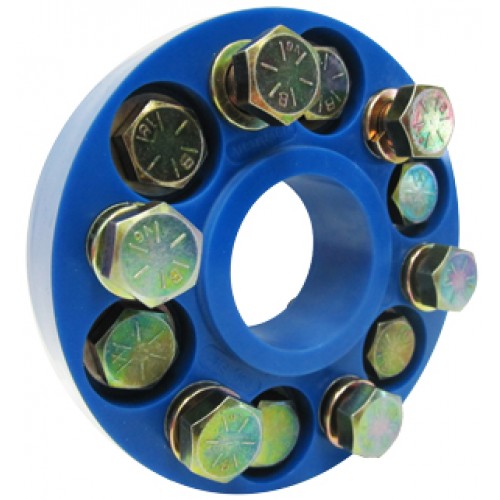

616 5/8 Flexible Disc Coupling

Flange Bolt Circle Diameter PCD (F)4 3/4" (120.65mm)
Flange Bolt Size5/8" UNC
Flange Index Ring Spigot (E)3" (76.20mm)
Flange Index Ring TypeB
Poly Flex Coupling OD (G)6 3/8" (161.92mm)
Poly Flex Coupling ID2 3/8" (60.32mm)
Poly Flex Coupling Thickness (A)1 1/2" (38.10mm)
Flange OD (C)5 3/4" (146.05mm)
Light Duty Rating (Nm)N/A
Medium Duty Rating (Nm)1800
Heavy Duty Rating (Nm)2750
Super Heavy Duty Rating (Nm)3600
Weight (kg)2.95
Data Sheet
