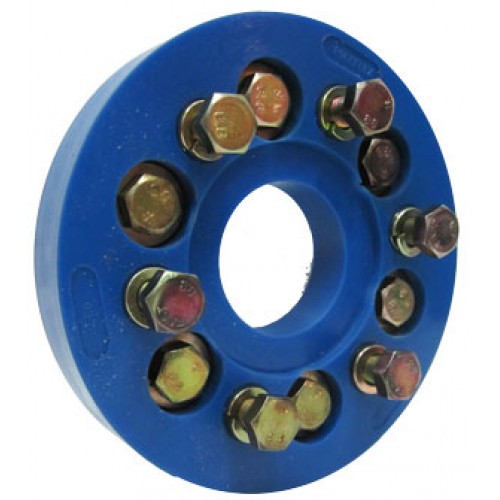

566 Flexible Disc Coupling

Flange Bolt Circle Diameter PCD (F)100mm
Flange Bolt SizeM10
Flange Index Ring Spigot (E)75mm
Flange Index Ring TypeA
Poly Flex Coupling OD (G)152mm
Poly Flex Coupling ID50mm
Poly Flex Coupling Thickness (A)25mm
Flange OD (C)125mm
Light Duty Rating (Nm)N/A
Medium Duty Rating (Nm)496
Heavy Duty Rating (Nm)610
Super Heavy Duty Rating (Nm)N/A
Weight (kg)1.12
Data Sheet
Category:

    Enquire about this product

    Vessel:

    LOA:

    Construction:

    Hull type:

    Engine(s)

    Number:

    Make & Model

    Rate HP:

    RPM:

    Weight:

    Gearbox(es)

    Number:

    Make & Model

    Reduction: :1

    Weight:

    Enginer/Gearbox Configuration

    If other please specific:

    Vessel Use:

    A:

    B:

    E:

    F:

    G:

    Gearbox flange spigot:
