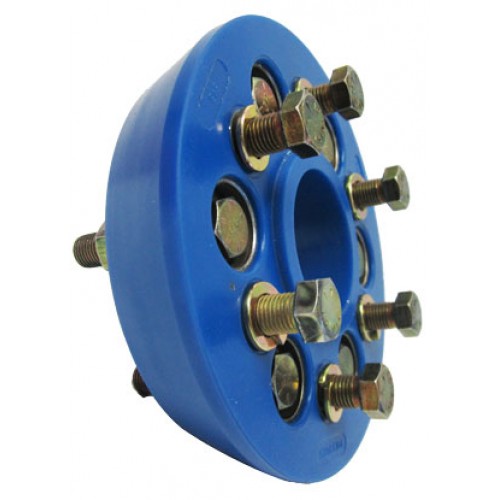

546 IRM Flexible Disc Coupling

Flange Bolt Circle Diameter PCD (F)3 7/8" (98.42mm)
Flange Bolt Size7/16" UNF
Flange Index Ring Spigot (E)2 1/2" (63.50mm)
Flange Index Ring TypeB
Poly Flex Coupling OD (G)6" (152.40mm)
Poly Flex Coupling ID2" (50.40mm)
Poly Flex Coupling Thickness (A)1 1/4" (31.75mm)
Flange OD (C)4 3/4" (120.65mm)
Light Duty Rating (Nm)N/A
Medium Duty Rating (Nm)800
Heavy Duty Rating (Nm)1360
Super Heavy Duty Rating (Nm)1950
Weight (kg)1.55
Data Sheet
