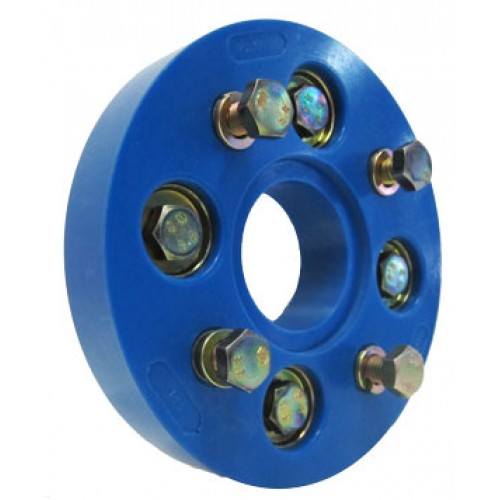

534 Flexible Disc Coupling

Enquire about this product
Flange Bolt Circle Diameter PCD (F)100mm
Flange Bolt SizeM10
Flange Index Ring Spigot (E)65mm
Flange Index Ring TypeA
Poly Flex Coupling OD (G)152mm
Poly Flex Coupling ID50mm
Poly Flex Coupling Thickness (A)25mm
Flange OD (C)127mm
Light Duty Rating (Nm)325
Medium Duty Rating (Nm)618
Heavy Duty Rating (Nm)703
Super Heavy Duty Rating (Nm)N/A
Weight (kg)0.95
Data Sheet
Categories: ,
534-Coupling
534-Coupling
Polymer Code80D95A90A80A
Hardness – Shore80959083
Tensile Strength – psi7550650048004500
RatingSuper Heavy DutyHeavy DutyMedium DutyLight Duty
