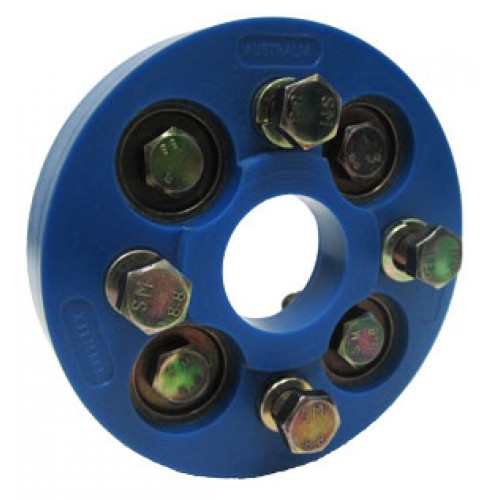

464 Flexible Disc Coupling

Enquire about this product
Flange Bolt Circle Diameter PCD (F)80mm
Flange Bolt SizeM10
Flange Index Ring Spigot (E)60mm
Flange Index Ring TypeB
Poly Flex Coupling OD (G)127mm
Poly Flex Coupling ID38.10mm
Poly Flex Coupling Thickness (A)25mm
Flange OD (C)100mm
Light Duty Rating (Nm)230
Medium Duty Rating (Nm)496
Heavy Duty Rating (Nm)610
Super Heavy Duty Rating (Nm)N/A
Weight (kg)0.8
Data Sheet
Categories: ,
464-Coupling
464-Coupling
Polymer Code80D95A90A80A
Hardness – Shore80959083
Tensile Strength – psi7550650048004500
RatingSuper Heavy DutyHeavy DutyMedium DutyLight Duty
