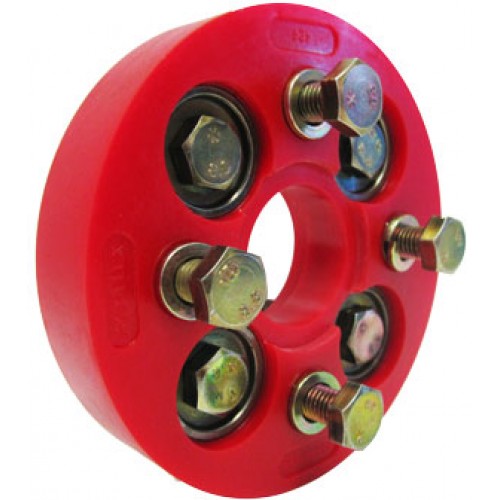

424 Flexible Disc Coupling

Flange Bolt Circle Diameter PCD (F)78mm
Flange Bolt SizeM10
Flange Index Ring Spigot (E)50mm
Flange Index Ring TypeA
Poly Flex Coupling OD (G)127mm
Poly Flex Coupling ID38.10mm
Poly Flex Coupling Thickness (A)25mm
Flange OD (C)105mm
Light Duty Rating (Nm)230
Medium Duty Rating (Nm)496
Heavy Duty Rating (Nm)610
Super Heavy Duty Rating (Nm)N/A
Weight (kg)0.8
Data Sheet
Categories: ,
424-Coupling
424-Coupling
Polymer Code 80D 95A 90A 80A
Hardness – Shore 80 95 90 83
Tensile Strength – psi 7550 6500 4800 4500
Rating Super Heavy Duty Heavy Duty Medium Duty Light Duty
