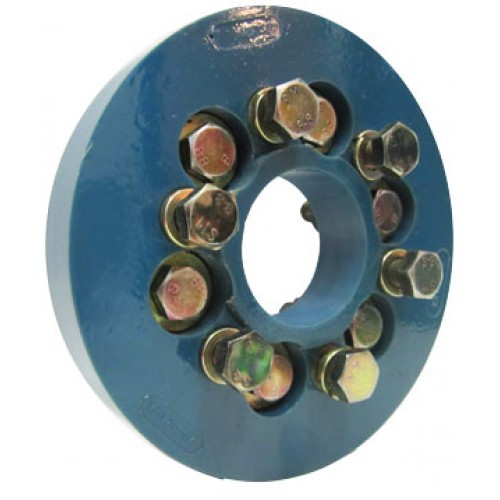

416 Flexible Disc Coupling

Flange Bolt Circle Diameter PCD (F)85mm
Flange Bolt SizeM10
Flange Index Ring Spigot (E)65mm
Flange Index Ring TypeB
Poly Flex Coupling OD (G)152mm
Poly Flex Coupling ID50mm
Poly Flex Coupling Thickness (A)25mm
Flange OD (C)105mm
Light Duty Rating (Nm)325
Medium Duty Rating (Nm)618
Heavy Duty Rating (Nm)703
Super Heavy Duty Rating (Nm)N/A
Weight (kg)0.70
Data Sheet
Category:

    Enquire about this product

    Vessel:

    LOA:
    Construction:

    Hull type:

    Engine(s)

    Number:
    Make & Model
    Rate HP:
    RPM:

    Weight:

    Gearbox(es)

    Number:
    Make & Model
    Reduction: :1
    Weight:

    Enginer/Gearbox Configuration

    If other please specific:

    Vessel Use:

    A:
    B:
    E:
    F:

    G:

    Gearbox flange spigot:
