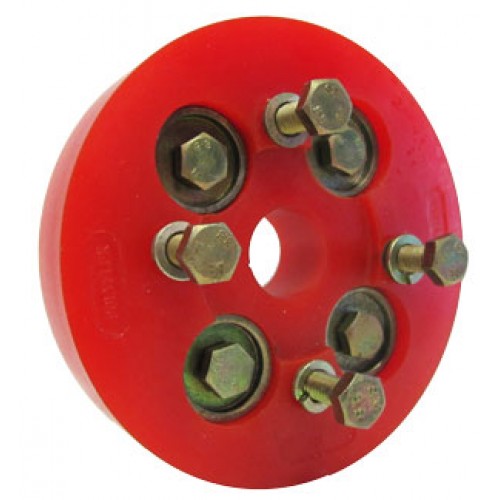

414 Flexible Disc Coupling

Enquire about this product
Flange Bolt Circle Diameter PCD (F)70mm
Flange Bolt SizeM8
Flange Index Ring Spigot (E)57mm
Flange Index Ring TypeA
Poly Flex Coupling OD (G)125mm
Poly Flex Coupling ID25.40mm
Poly Flex Coupling Thickness (A)25mm
Flange OD (C)105mm
Light Duty Rating (Nm)230
Medium Duty Rating (Nm)496
Heavy Duty Rating (Nm)610
Super Heavy Duty Rating (Nm)N/A
Weight (kg)0.62
Data Sheet
Categories: ,
414-Coupling
414-Coupling
Polymer Code80D95A90A80A
Hardness – Shore80959083
Tensile Strength – psi7550650048004500
RatingSuper Heavy DutyHeavy DutyMedium DutyLight Duty
