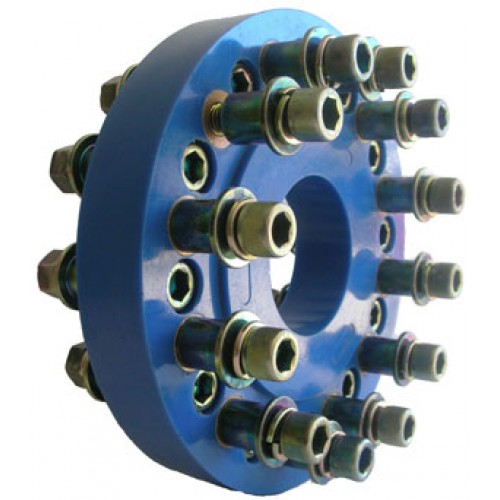

3306 Flexible Disc Coupling

Flange Bolt Circle Diameter PCD (F)190mm
Flange Bolt SizeM14 SHCS
Flange Index Ring Spigot (E)145mm
Flange Index Ring TypeB
Poly Flex Coupling OD (G)240mm
Poly Flex Coupling ID80mm
Poly Flex Coupling Thickness (A)38.10mm
Flange OD (C)225mm
Light Duty Rating (Nm)N/A
Medium Duty Rating (Nm)N/A
Heavy Duty Rating (Nm)4000
Super Heavy Duty Rating (Nm)8000
Weight (kg)5.90
Data Sheet
Categories: ,
3306-Coupling
3306-Coupling
Polymer Code 80D 95A 90A 80A
Hardness – Shore 80 95 90 83
Tensile Strength – psi 7550 6500 4800 4500
Rating Super Heavy Duty Heavy Duty Medium Duty Light Duty
