20150 Flexible Disc Coupling

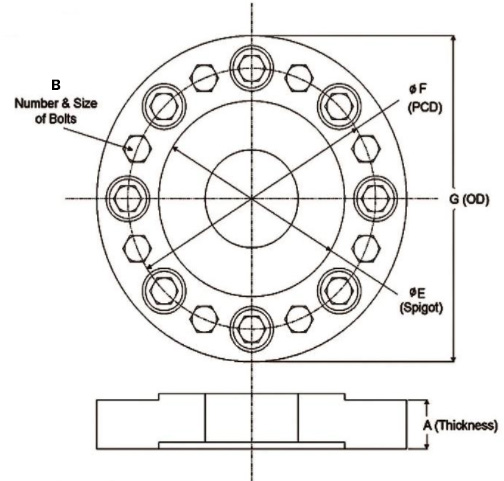

Flange Bolt Circle Diameter PCD (F)240MM
Flange Bolt SizeM20
Flange Index Ring Spigot (E)150mm
Flange Index Ring TypeB
Poly Flex Coupling OD (G)336.55mm
Poly Flex Coupling ID100mm
Poly Flex Coupling Thickness (A)38.1
Flange OD (C)280mm
Light Duty Rating (Nm)N/A
Medium Duty Rating (Nm)N/A
Heavy Duty Rating (Nm)8000
Super Heavy Duty Rating (Nm)N/A
Weight (kg)
Data Sheet
Categories: ,
20150-Coupling
20150-Coupling
Polymer Code 80D 95A 90A 80A
Hardness – Shore 80 95 90 83
Tensile Strength – psi 7550 6500 4800 4500
Rating Super Heavy Duty Heavy Duty Medium Duty Light Duty
