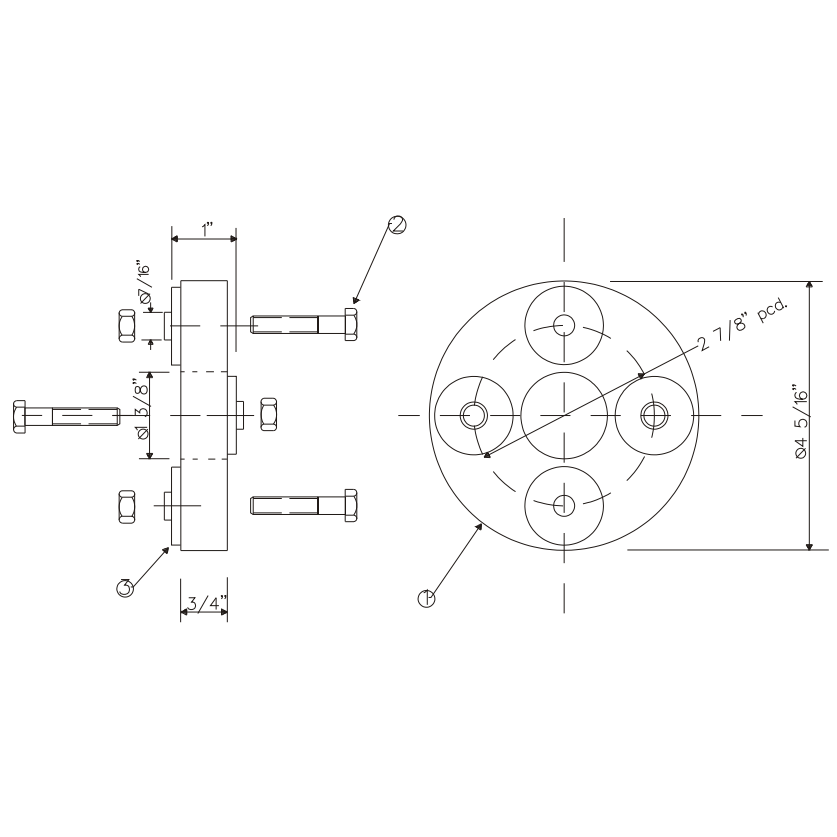

2.875 Flexible Disc Coupling

Enquire about this product
Flange Bolt Circle Diameter PCD (F)2 7/8" (73.025mm)
Flange Bolt Size5/16" UNF
Flange Index Ring Spigot (E)Pilot
Flange Index Ring TypePlain
Poly Flex Coupling OD (G)4 5/16" (109.53mm)
Poly Flex Coupling ID1 3/8" (34.925mm)
Poly Flex Coupling Thickness (A)1" (25.40mm)
Flange OD (C)2 Leg
Light Duty Rating (Nm)180
Medium Duty Rating (Nm)210
Heavy Duty Rating (Nm)290
Super Heavy Duty Rating (Nm)N/A
Weight (kg)
Data Sheet
Categories: ,
2-875-Coupling
2-875-Coupling
Polymer Code80D95A90A80A
Hardness – Shore80959083
Tensile Strength – psi7550650048004500
RatingSuper Heavy DutyHeavy DutyMedium DutyLight Duty

    Enquire about this product

    Vessel:

    LOA:

    Construction:

    Hull type:

    Engine(s)

    Number:

    Make & Model

    Rate HP:

    RPM:

    Weight:

    Gearbox(es)

    Number:

    Make & Model

    Reduction: :1

    Weight:

    Enginer/Gearbox Configuration

    If other please specific:

    Vessel Use:

    A:

    B:

    E:

    F:

    G:

    Gearbox flange spigot:
