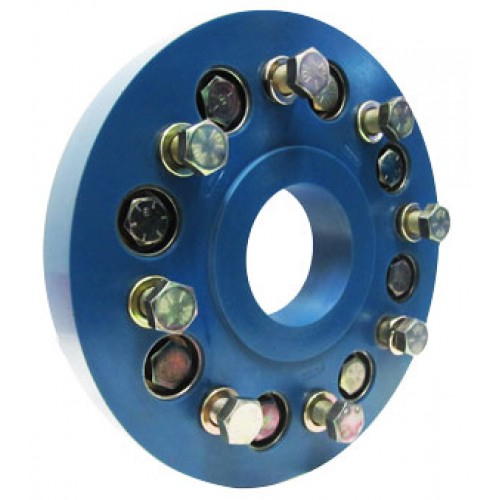

11834 Flexible Disc Coupling

Flange Bolt Circle Diameter PCD (F)9 1/2" (241.30mm)
Flange Bolt Size3/4" UNF
Flange Index Ring Spigot (E)6" (152.40mm)
Flange Index Ring TypeB
Poly Flex Coupling OD (G)13 1/4" (336.55mm)
Poly Flex Coupling ID3 7/8" (98.42mm)
Poly Flex Coupling Thickness (A)1 13/16" (46.03)
Flange OD (C)11" (279.40mm)
Light Duty Rating (Nm)N/A
Medium Duty Rating (Nm)N/A
Heavy Duty Rating (Nm)9200
Super Heavy Duty Rating (Nm)N/A
Weight (kg)10.8
Data Sheet
Categories: ,
11834-Coupling
11834-Coupling
Polymer Code80D95A90A80A
Hardness – Shore80959083
Tensile Strength – psi7550650048004500
RatingSuper Heavy DutyHeavy DutyMedium DutyLight Duty

    Enquire about this product

    Vessel:

    LOA:

    Construction:

    Hull type:

    Engine(s)

    Number:

    Make & Model

    Rate HP:

    RPM:

    Weight:

    Gearbox(es)

    Number:

    Make & Model

    Reduction: :1

    Weight:

    Enginer/Gearbox Configuration

    If other please specific:

    Vessel Use:

    A:

    B:

    E:

    F:

    G:

    Gearbox flange spigot:
